CryoTape ACP
Cryogenic tape for MLI overlap sealing and lightweight fixing.
Typical applicationsCryogenic storage / 4K magnets / Vacuum piping / Superconducting cable
Engineering datasheet
Selection data and declared limitations
Technical sales will review the requested product and application conditions, then reply by email with document availability and next steps.

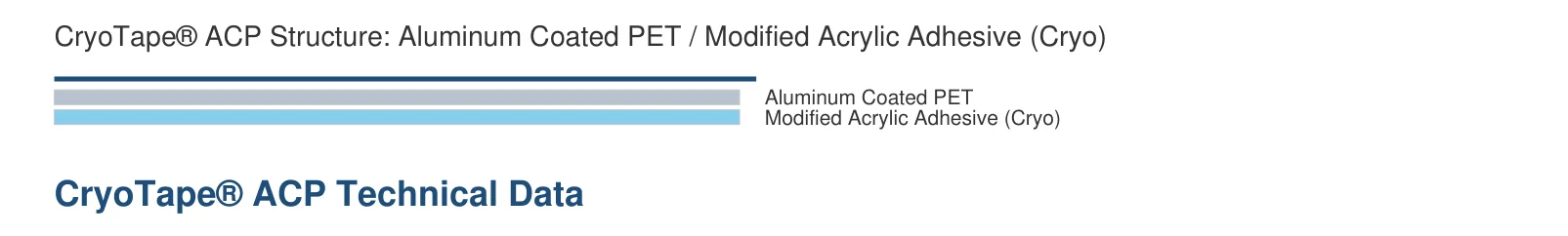

- Structure
- Aluminum-coated PET / modified cryogenic acrylic adhesive
- Temperature range
- 4K-393K continuous / 423K short-term
- Total thickness
- 0.080 mm
- Roll length
- 50 m
- Maximum standard width
- 50 mm
- Recommended vacuum condition
- Tape is a localized assembly accessory, not a vacuum barrier or vacuum rating. Adhesive outgassing, coverage, substrate preparation, cure / dwell, and compatibility with the project's pressure and cleanliness limits require review.
- Thermal performance
- No apparent thermal-conductivity or heat-flux value is assigned to the tape alone. Tape coverage, overlap, thickness, and conductive bridging can affect the complete insulation assembly and must be included in system testing.
- Width and roll options
- Roll widths, lengths, liner options, and custom slitting are confirmed by RFQ. Specify finished width, length, core, winding direction, and any clean packaging requirement.
- Layer configuration options
- Single tape construction supplied in rolls. Overlap, number of wraps, fixing interval, and edge-finishing pattern are installation variables defined by the project.
- Processing options
- Custom slitting and rewinding
- Cut lengths and project kit packaging by agreement
- Pairing with CryoMLI and CryoFiG material packages
- Typical applications
- Notes and limitations
- Adhesion depends on substrate, preparation, pressure, dwell time, temperature, contamination, and thermal cycling.
- Not a structural fastener, pressure seal, electrical qualification, or guaranteed low-outgassing solution without project testing.
- Minimize tape area over MLI where unnecessary conductive paths or layer compression could be introduced.
- Download PDF
- CryoTape Series Product Brochure
Product technical table
CryoTape ACP technical data
The table below is published as product-level reference data. Final use still depends on application geometry, vacuum condition, installation density, cleanliness, and customer validation.
| Item | Unit | Technical specification |
|---|---|---|
| Structure | - | Aluminum Coated PET / Modified Acrylic Adhesive (Cryo) |
| Substrate Thickness | mm | 0.05 ±0.005 |
| Adhesive Thickness | mm | 0.03 ±0.005 |
| Total Thickness | mm | 0.08 ±0.01 |
| Length | m | 50 |
| Width | mm | 10/15/20/25/30/50 |
| Custom Width | - | Available (MOQ 2,000 rolls) |
| Adhesive | - | Modified Acrylic (Cryo) |
| Tensile Strength | N/25mm | 140 |
| Application Temperature Range | - | 4K(-269°C) - 393K(120°C) continuous / 423K(150°C) short-term |
| Initial Tack (Rolling Ball) | - | Steel Ball No. 14-16 |
| Instantaneous Initial Tack | - | >8.8 N/25mm (>900g) |
| Low-Temp Performance (-30°C / -196°C) | - | No embrittlement, no delamination; meets cryogenic engineering requirements |
| Field proven in Liquid Helium (4K) | - | Confirmed reliable performance in actual LHe applications |
