Application material system
Superconducting Cable & Power Systems
Insulate long cable runs and joints while controlling installation consistency, handling damage, thermal bridges, and material preparation cost.
East Far material scope
Relevant East Far products
CryoMLI 202
General cryogenic MLI for tanks, piping, cold boxes, superconducting cables, and research systems.
CryoMLI 212
Flexible MLI option for cryogenic vessels, piping, cold boxes, and power systems.
CryoMLI 302
Open spacer structure for high-vacuum cryogenic systems, superconducting systems, and spacecraft MLI blankets.

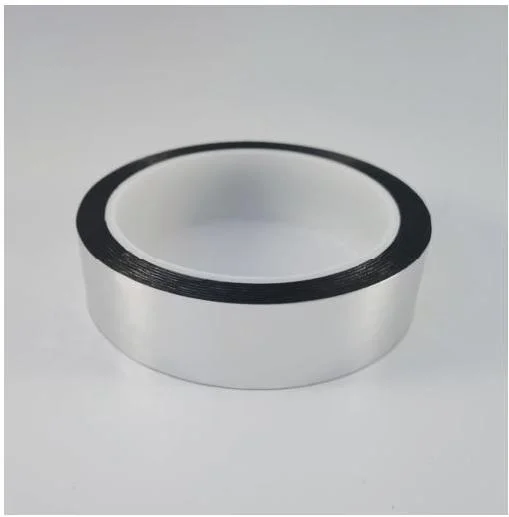

CryoTape ACP
Cryogenic tape for MLI overlap sealing and lightweight fixing.

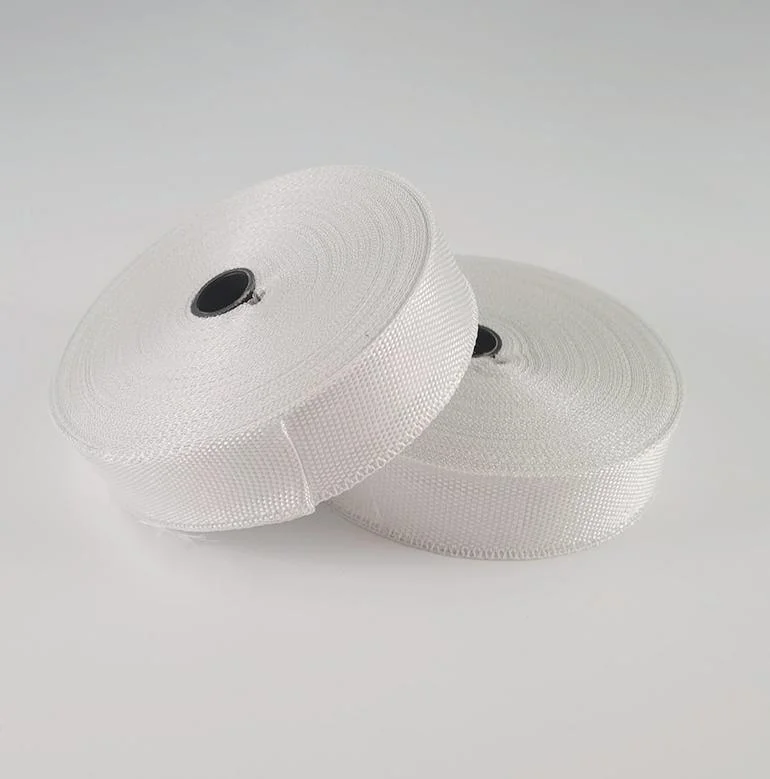

CryoTape FiG
Mechanical protection and reinforcement tape for cryogenic insulation packages.
CryoTape PI
High-temperature and cryogenic-compatible tape for aerospace, superconducting, and research systems after project review.
CryoFiG Fabric
Outer protection and reinforcement fabric for cryogenic material packages.
CryoGetter / Vacuum Support
Vacuum-maintenance support for MLI plus adsorbent vacuum-insulation systems.
Engineering scope
Key engineering challenges
- Maintain repeatable wrap density along long runs
- Protect insulation at pulling, jointing, and handling zones
- Coordinate electrical, mechanical, and cryogenic interfaces
System layers
- 01 Cable cryostat
Cable, former, dielectric, coolant channel, and mechanical structure defined by the cable designer.
- 02 Long-run MLI
CryoMLI slit and rewound for repeatable helical or project-defined application.
- 03 Fixing and reinforcement
CryoTape and CryoFiG used at controlled intervals and handling zones.
- 04 Vacuum envelope
Jacket, joints, terminations, supports, and pumping hardware remain system components.
Supporting materials and supply boundaries
East Far Cryo supplies cryogenic insulation materials, related processing, and material-selection support. Equipment and system responsibilities remain with the project owner and equipment designer.
- Cable conductor, dielectric system, cryostat, joints, terminations, and power equipment are outside East Far Cryo's manufacturing scope.
- Electrical insulation, partial-discharge, fault, and fire requirements require cable-system qualification.
- Final slit width and roll length depend on wrapping pitch, diameter, handling equipment, and installation plan.
Parameters needed for quotation
- Cryogenic medium and normal / transient operating temperatures
- Target vacuum level, pump-down method, hold time, and expected residual-gas load
- Equipment geometry, dimensions or surface area, penetrations, and installation access
- Target heat leak or required layer count and any governing acceptance method
- Required delivery form: rolls, slit widths, sewn blankets, profile-cut parts, or installation kits
- Cable diameter, run length, wrapping pitch, joint count, pulling / handling method, and electrical restrictions
Downloads and technical contact
CryoMLI Series Product Brochure
Product structures, specifications, and application notes for CryoMLI materials.
CryoTape Series Product Brochure
Cryogenic tape structures, temperature ranges, and fixing recommendations.
MLI Technical Reference
Engineering reference for MLI material selection, vacuum, heat flux, and layer density.
We will review your application parameters and reply by email with any clarification questions and the next material-selection step.
