CryoMLI VDMix
Custom variable-density MLI package for LH2, fusion, accelerator, and advanced research systems.
Typical applicationsLiquid hydrogen / Rocket thermal control / Research cryogenics / Deep cryogenic missions
Engineering datasheet
Selection data and declared limitations
Technical sales will review the requested product and application conditions, then reply by email with document availability and next steps.

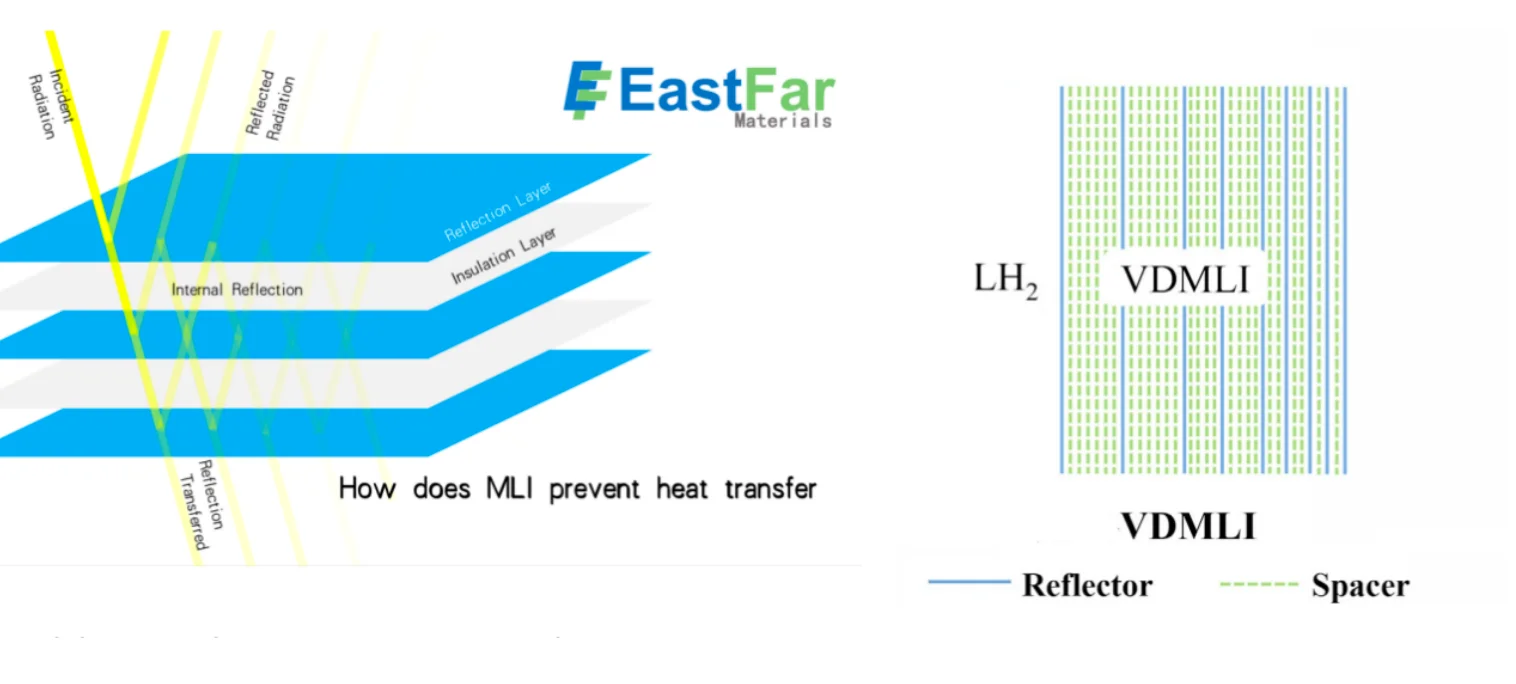

- Structure
- Variable-density custom MLI composite
- Temperature range
- application specific
- Recommended vacuum condition
- For a qualified evacuated insulation space. Final pressure, pump-down method, residual-gas load, hold time, and vacuum-maintenance strategy must be defined for the installed assembly; performance degrades as gas conduction increases.
- Thermal performance
- Apparent thermal conductivity and heat flux are installed-system values, not unconditional roll-material properties. No single value is published here. Request data for stated hot / cold boundary temperatures, vacuum level, layer density, seam design, and test method.
- Width and roll options
- Master-roll availability plus custom slitting and rewinding are confirmed by RFQ. Specify finished width, width tolerance, roll length, core, winding direction, and packaging limits.
- Layer configuration options
- Layer count and density zones are engineered for the stated boundary temperatures, geometry, vacuum, and target heat leak; there is no universal VDMix stack.
- Processing options
- Slitting and rewinding to confirmed dimensions
- Sewing and blanket assembly where the structure permits
- Drawing-based or sample-based cutting
- CNC vibration-knife profile cutting, openings, and project kit packaging
- Typical applications
- Notes and limitations
- Not a structural support, pressure boundary, seal, or substitute for vacuum-system design.
- Published temperature ranges describe constituent material capability; adhesive, seam, contamination, oxygen-service, and installation limits can narrow the usable range.
- System heat leak must be validated for the actual assembly and test conditions.
- Requires an agreed zoning drawing, installation method, and performance basis before configuration is released.
- Download PDF
- CryoMLI Series Product Brochure
Product technical table
CryoMLI VDMix technical data
The table below is published as product-level reference data. Final use still depends on application geometry, vacuum condition, installation density, cleanliness, and customer validation.
| Item | Unit | Technical specification |
|---|---|---|
| Product Type | - | Variable Density MLI (Custom Composite) |
| Base Materials | - | CryoMLI® 101 / 102 / 201 / 202 / 212 / 302 |
| Layer Density — Cold Side | layers | Custom (lower density, optimized for conduction reduction) |
| Layer Density — Hot Side | layers | Custom (higher density, optimized for radiation shielding) |
| Material Differentiation | - | Different reflector/spacer combinations per side |
| Standard Widths | mm | 90 / 100 / 200 / 300 / 910 / 1310 / 1800 / 2000 |
| Maximum Production Width | mm | 2160 |
| Custom Width | - | Available (MOQ and surcharge apply) |
| Composite Layer Configurations | - | 5/5, 10/10, 20/20 (mature); custom available |
| Roll Material — Max Layers | - | Up to 10/10 |
| Custom Shape Cutting | - | Vibration knife cutting machine |
| Custom Dimensions | - | Per customer specification |
| Custom Layer Count | layers | Per customer specification |
| Processing Capabilities | - | Rewinding, sewing, cutting, lamination |
| Production Method | - | Fully automated mechanical production |
| Min Application Temperature | K | Below 4K (custom configurations) |
| Standards Compliance | - | GB/T 31480-2015, ASME BPVC Section VIII |
| Production Lead Time | - | Subject to customization scope |
| Operating Vacuum Requirement | - | < 1×10 -4 Torr (high vacuum) for rated performance |
| Recommended Layer Density | layers/mm | Variable (optimized per application) |
| Reference Heat Flux | W/m² | Custom (dependent on material combination and layer density) |
